Secure Office .NET Installation

The current version of Secure Office .NET supports Windows 2000/2003 and Windows XP. The  monitoring modules can be installed on Windows NT/2000/XP/Vista.

Please note, that Secure Office .NET must be installed on the network administrator's computer only. No additional manual installations are required on the monitored computers.

Please download and install the following required components before Secure Office .NET installation. All components are available at Microsoft Download Center for free.

  • Microsoft .NET Framework Version 2.0 Redistributable Package (x86) (recommended version 2.0.50727 )
  • Microsoft Report Viewer Redistributable 2005
  • Microsoft SQL Server 2005 Express Edition
  • Microsoft Internet Information Services (included in Windows 2000 and XP)
  • Windows Installer 3.1 (only if prompted during the installation)

All additional components are free Microsoft products. If you have Microsoft SQL Server 2000 installed, you can use it instead of Microsoft SQL Server 2005 Express Edition.

The installation of Secure Office .NET consists of two parts:

  • The Web Access module to review the logs and statistics (requires MS Internet Information Services (IIS) ) - WebSetup_Secure Office_NET.msi file
    this an application created with ASP.NET technology
  • Secure Office .NET administration module - Setup Secure Office .NET.msi file

In a typical configuration, you can install all components on a single administrator's PC.

The necessary installation steps :

-Install Web access module ( you will use it to review the logs and statistics)

This module must be installed fist to create the SQL Server database. Run WebSetup_Secure Office_NET.msi file and follow the on-screen instructions. You can change the default web directory, if you need. The default web directory for ASP.NET application is sc_view

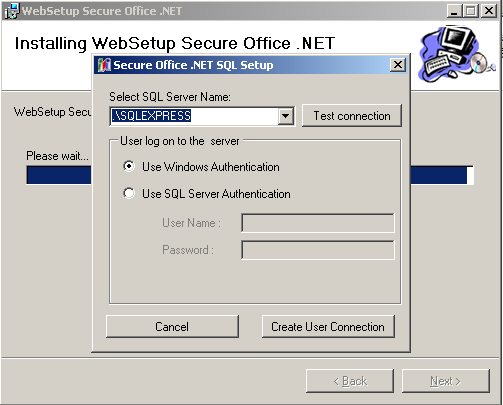

 At the end of the setup process, you will need to configure the access to the SQL Server. You can use Windows authentication (recommended) or SQL Server authentication. Select the server name from the list and choose "Create user connection".

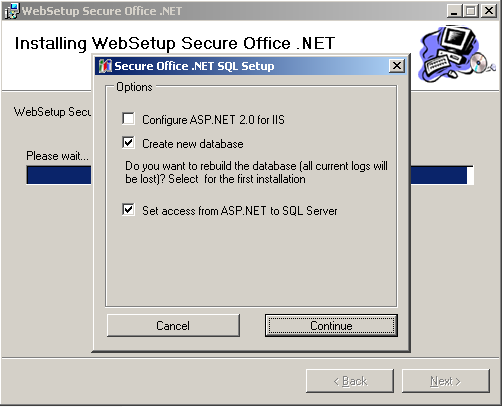

Choose "Configure ASP.NET 2.0 for IIS", if you never used ASP.NET on your web server before. This option must be enabled for the initial installation.

"Create new database" -  must be enabled for the initial installation, to create the SQL Server database.

"Set access from ASP.NET to SQL Server" - enables the access for ASP.NET applications to the SQL Server database. If you will use SQL Server authentication, the option "Create user on SQL Server" will be available instead. See "SQL Server configuration" chapter for details.

-Installing Secure Office .NET administration module

Run "Setup Secure Office .NET.msi" file. At the end of the setup process, you will need to configure the connection to the SQL Server. Choose the server name from the list and select "Create user connection". Refer to "SQL Server configuration" chapter for details.
